Monday, September 25, 2017

Ch 22 - Electrical/Avionics - Part 10

"Git her done!"

So much to talk about… so little time.

Wade and I just returned back from Rough River, and had an awesome time. Yes, we did fly there and back in the Long EZ, which means you and I have a lot of catching up to do, don’t we. So, hang in there as I try to bring you up to date.

I resigned myself to be carrying a perfect usable roll servo (from the the removed Trio autopilot) to Rough River and back, even though I would not be able to use it since it does not interface with the Mini-AP, thus I started closing the hole I had just opened in the last blog entry.


Foam removed to make a flox corner

The flox corner will withstand the screws torque better than the foam/glass sandwich

Autopilot hole being closed up

I decided to peel-ply the whole panel to get a different texture than the glass weave

Peel-ply removed, lot of trimming and sanding to do.

One item I yet had to find a place for was the ARINC module. Looking around behind the panel, I noticed the unused bracket where the vacuum regulator filter used to be mounted, and it seemed perfect for the new box.


Trying to reuse an existing bracket

Now I just needed to come up with a permanent way to keep it there.


The new ARINC mount

The way it should work

I decided to 3D print a fitted mount out of ABS.


I printed it in the standing configuration

This 3D printer never ceases to amaze me

So glad it fit

The fit turned out great for once, and I moved on to the next item on my list… the OAT (Outside Air Temperature) probes.

A while ago, I chased two lose wires to a hole in the wheel well glass enclosure filled with silicone and what looked like an old temperature probe. The hole turned out to be perfect sized for the GRT probe, so I tried it there and liked both the clearance with the wheel, and the position of the wires as it related to the new panel.

I ended up mounting both probes near each other.


Two OAT probes installed in the wheel well

Plenty of clearance with the nose wheel

Problem solved!

You might remember my OATs wires are part of the Magnetometer bundle, so I started looking for a good location for it. I was worried I’d have to remove a wing to put in in the wing root the way most builder do, but acting on a suggestion from my friend Walter, I decided to test it below the pilot’s thigh support.

That spot seemed made for the magnetometer, with two existing brackets perfectly positioned for a box its size, and the closest steel part 6” (15 cm) away, and very small. I used a small leftover piece aluminum to make an adapter for it. The magnetometer seemed rock solid and perfectly aligned with the aircraft centerline.


Magnetometer mounted under the thigh support

Another chance to reuse an existing bracket

Next on my list were the radio mounting brackets. I laid a 14”  (36 cm) six ply BID layup on an aluminum L channel, and the next day I had two strong 7” (18 cm) radio mounting bracket blanks. I fitted them to the panel, then added nut plates to hold the radios.


Clamping the fiberglass bracket in place

Bracket seen from behind the panel

Radio brackets bolted to the panel

The right bracket was profiled to match the panel's shape

Nut-plates riveted to the bracket and radio trays installed

Trays mounted to the panel

GPS/NAV/COM and transponder installed

One problem that cropped up at this time, was that the intercom would no longer fit above the radio stack, but since I wasn’t planning on using the autopilot anymore I decided to make an adapter plate, and use its spot for the intercom instead. Yes, I'd have to reopen the same hole I had just closed. 😤


Intercom's new temporary position

New intercom face plate

Intercom installed

Intercom in the panel

Front view

Finished intercom placement

While the panel was apart, I decided to relocate the flap switch to a place I could more easily get to during a go-around event. Because the switch looked like all the other switches on the panel, I decided to make it more distinct by fashioning a cover in the shape of a flap out of a piece of scrap aluminum.


Band-sawed aluminum scrap...

... belt sanded into a pleasing flap shape.

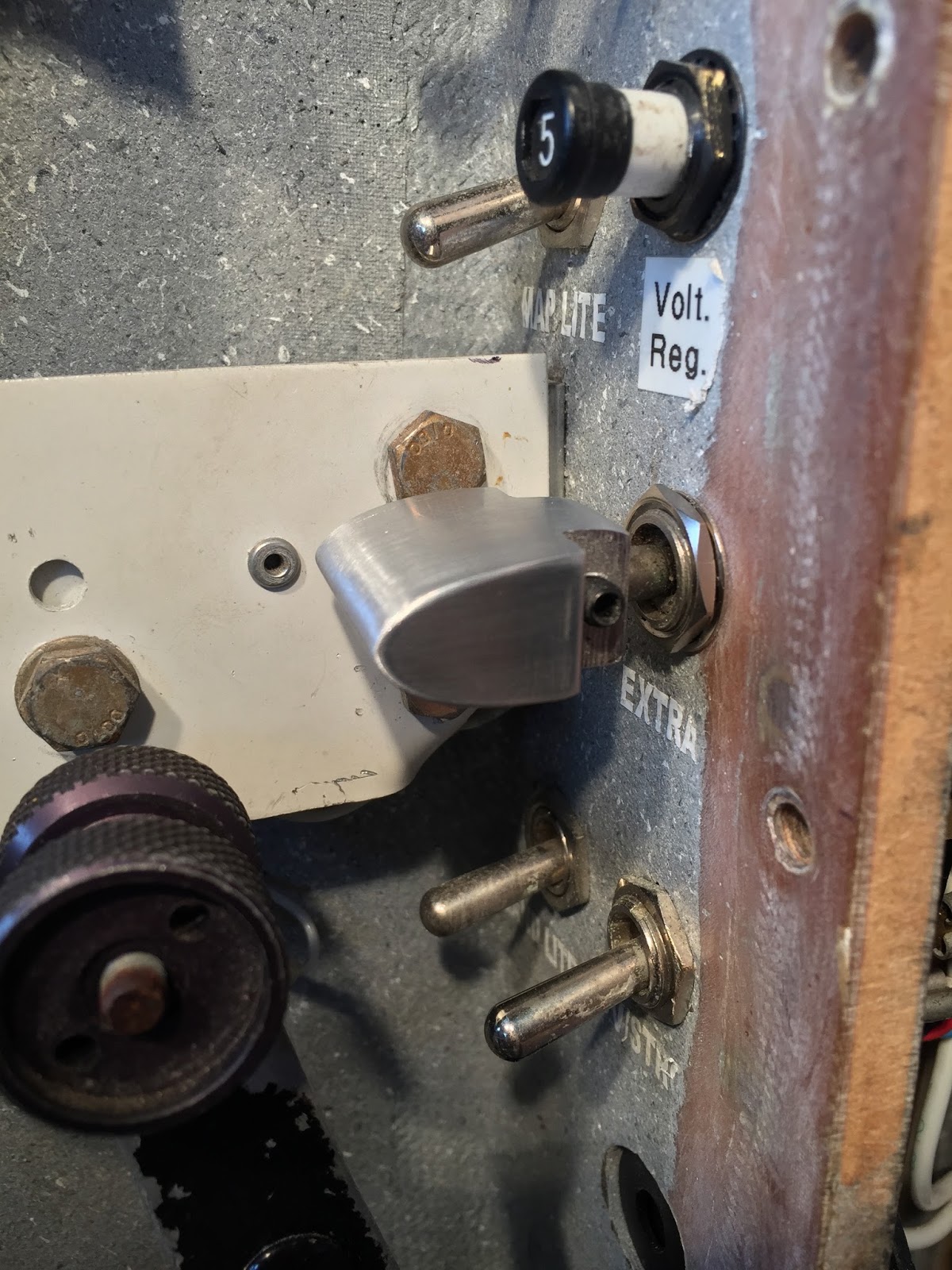

The Landing Brake switch is pretty obvious




Demonstrating the "new" landing brake switch




Another issue that cropped up during testing was that only four of my warning lights behaved as they should have. Solving this ate two precious days, and put the planned trip to Rough River in jeopardy.

The “Voltage Low” light was restored to proper functioning through the use of a relay (thanks Nick).


Main Bus to the left, and Voltage Regulator to the right.


The wild behavior of the “Gear/Canopy” light and horn was corrected by removing it from the Press-To-Test circuit. I later reworked my PTT circuitry, and I plan on remaking the whole board the next time around.


Relay added to the "Gear/Canopy" light

The last big issue I ran into was that the GPS would not lock on to any satellite, even after 30 minutes of trying. To make a long story short, I eventually found that the shielding on the cable that came with the GPS tray did not connect well (thanks Jerry).




GPS unable to connect to satellites




This was an easy fix that unfortunately consumed another precious day, cutting it now very close to our planned Rough River departure.


Enough satellites to get a fix established

One last minute addition to the new panel was a pair of Dsub connectors to make the PTT easily detachable from the rest of the plane, and be removed as one unit with the panel for maintenance.

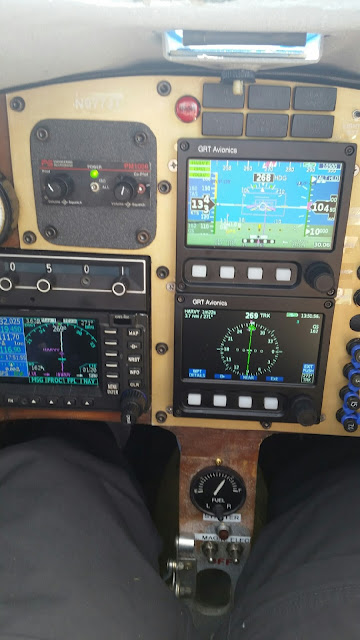

Completed panel

The day before our departure I reinstalled the canard, and recalculated the weight and balance, which turned out to be 4.6 lb (2 kg) lower. When Wade arrived from D.C. we calibrated the magnetometer, then I went for a test flight.

I orbited the field for a while, then tried the new ILS function by shooting the first practice precision approach this plane has ever seen.

Awesome!

The next day we left for our trip… dare I say it turned out to be one of the best Rough River fly-in in recent memory… and flew 1000 NM (round trip) without any issues whatsoever.















There is so much information on those little screens, I felt like I was watching three movies at the same time, but eventually I got more and more used to them, and I am now totally sold on them. I can hardly wait to get the two autopilot servos installed and do some more flying.

Here are a few shots of the panel I took during the flight…




Demonstrating the HITS (Highway In The Sky)



GPS navigation with HSI+RMI

GPS navigation with MAP mode (North Up), HITs (Highway In The Sky), Flight Director, and flight path marker.

GPS nav with MAP mode (Track Up), and HITS.

GPS nav with HSI+RMI (green), and VOR RMI (white).

VOR nav with HSI+RMI (white), and GPS RMI (green)

GPS nav with HSI+RMI (green), and VOR RMI (white).

GPS nav in HDG mode (060°), with HSI+RMI (green), and VOR RMI (white).




Friday, September 08, 2017

Ch 22 - Electrical/Avionics - Part 9

Cutting into the plane and panel #3

At this point I have done as much possible to better the odds that once at the airport I will have the least amount of surprises, but with Rough River only two weeks away nothing is for sure.

So, this is it! The airplane is going to be "down" until this process has taken its course.


"Look Ma'... no canopy!"

Elevator rod separates easily

"There goes the canard!"

EZ builder and tunnel engineer Walter Grantz assisted me with the canard removal

Once you get started things disappear quickly

Small sample of the things I removed

I also removed half a pound of wires that started and/or went nowhere

End of day one

A few more items, and pretty soon she was bare for all to see.


When you really look at it, there can't be a lot of strength there.

With nothing left to remove it was time to start cutting…


The first cut is always the hardest...

...but it gets easier quickly

Next, with Chris Cleaver’s help, I started closing up holes and rebuilding the panel using the same foam I used to build the panel on my project.


Patching holes

Pretty soon we ran into a myriad of small problems trying to fit the new panel into the old instrument panel. I went back home and shortened all the standoffs by half inch (1.3 cm). That made a small improvement, but I still had so many issues left that the only obvious solution became to make a whole new panel.

Crap! That was the last thing I needed to hear. This would set me back at least three more days, but it had to be done.


A lot of little changes

Work in progress

Old paper template vs new panel

New panel (in back) vs old

Old panel (left) vs new

I designed and 3D printed a holder for the annunciator lights that would conform to the top of the panel.


ABS warning lights holder

Alright, we should be back in business now!


New panel ready to go to the hangar

Note the PTT box is now at the bottom (orange box), and the square Trio autopilot.

Awaiting trial installation

I decided to position the new panel slightly lower than I had originally planned for a better fit with the canopy. This extended the plate below the leg holes very slightly, not good.


Reducing leg space by a quarter inch (6 mm)

Chris and I added more foam, then trimmed it back as much as possible to keep the leg holes usable.


Adding foam to the bottom of the panel

After curing and trimming

The next day, after a very long sanding session, I glassed the panel with two plies BID front and back.


Your glassing is only as good as your masking.

Talking about glassing...

Back home for the night, while the panel cured under the heat lamps, I took care of a bothersome design issue with the engine monitor.

You see the VM1000 has a lot of features that help you do all kinds of cool things, and you access them through the use of five buttons. Problem is those buttons were sized for a sheetmetal panel, and do not stick out of the thick fiberglass panel, rendering them unusable.


I have never been able to use any of these buttons before

So, I took some measurements and turned some longer ones on my CNC mini-lathe out of white Delrin.


New button vs old buttons

New Delrin extended buttons

The result was outstanding!


Now you are talking!

I can already see myself using the heck out of it in the future.

Back to the plane the next morning, I trimmed the extra glass, and looked at what I had accomplished.


This is going to work for me

I approved, then moved on to cutting the autopilot square hole.


Autopilot in position

Autopilot attached to the panel

Awesome!

But that’s when I ran into a snag, there was just not enough panel remaining on the left side after cutting the hole, to put some bolts through and expect it to be solid.


Black dots are future bolt holes

So, with much regret, I decided to close the autopilot hole back up, and fly without it for the time being, until I can install the GRT servos after Rough River.

We’ll take a look at that next time.
