Nose left side panel (8.0 hrs)
Luckily for me foam is easily repaired, because I had another “senior moment” while measuring the height of the left panel, and I cut the foam 1” (2.5 cm) short. I thought about cutting a new panel, but this foam is just too expensive to discard, so I cut the missing slice, then glued it back to the main piece.
 |
Amount to add to the incorrectly cut side panel |
 |
Foam slice cut, glued, and pinned to the side panel. |
After fitting and adding more scrap pieces to it, the left panel emerged just as weird looking as the right one did...
 |
At least they are symmetric |
... and since glassing it on the bench, then taping it to the nose when cured worked out so well for the right side, I decided to continue the same way.
 |

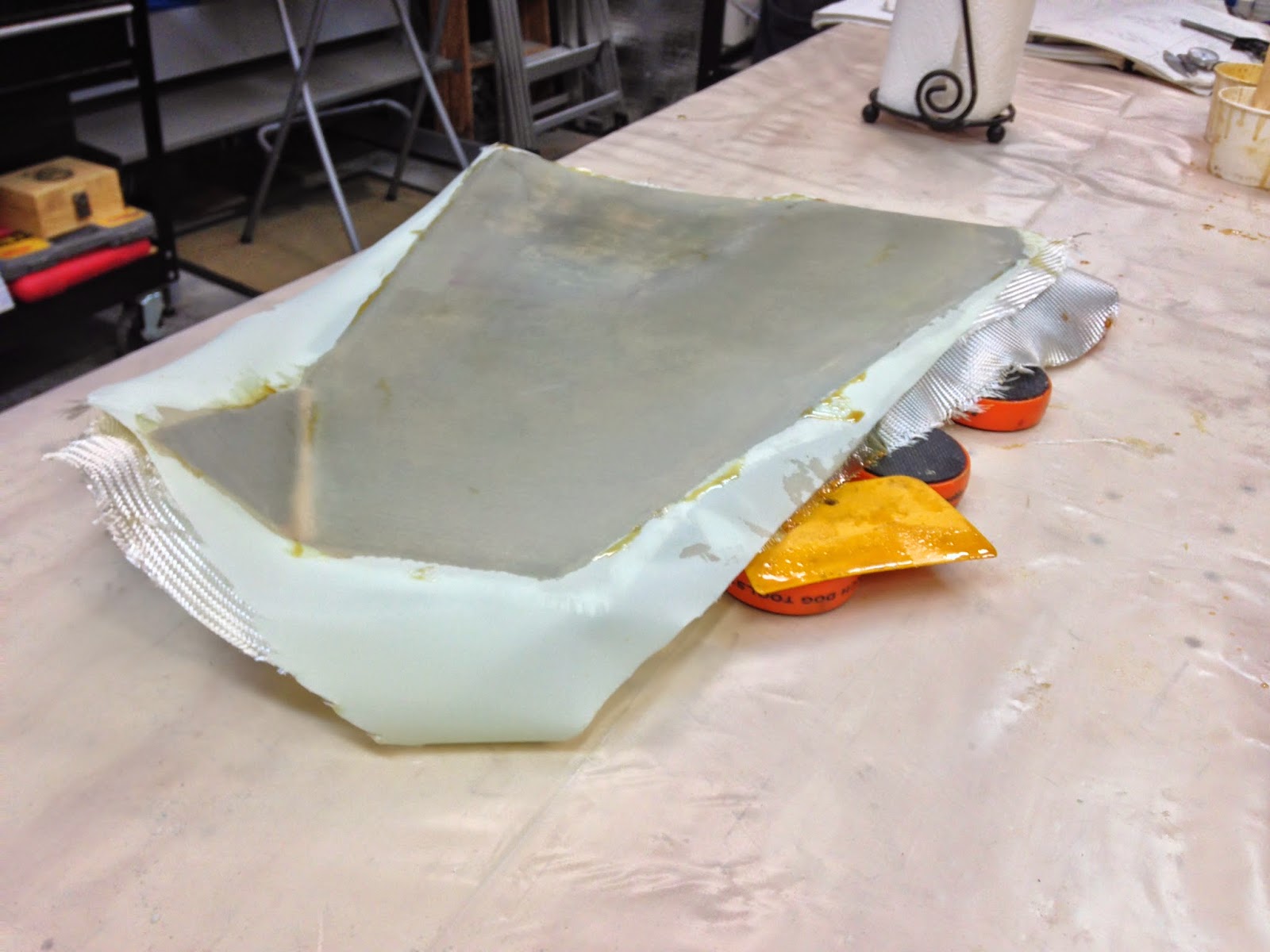

Left panel glassed, and peel-plied. |
I must have been very tired, because my quality control was terrible that day, and the next morning I found a bunch of medium to small air bubbles under the cured fiberglass (not good).
 |

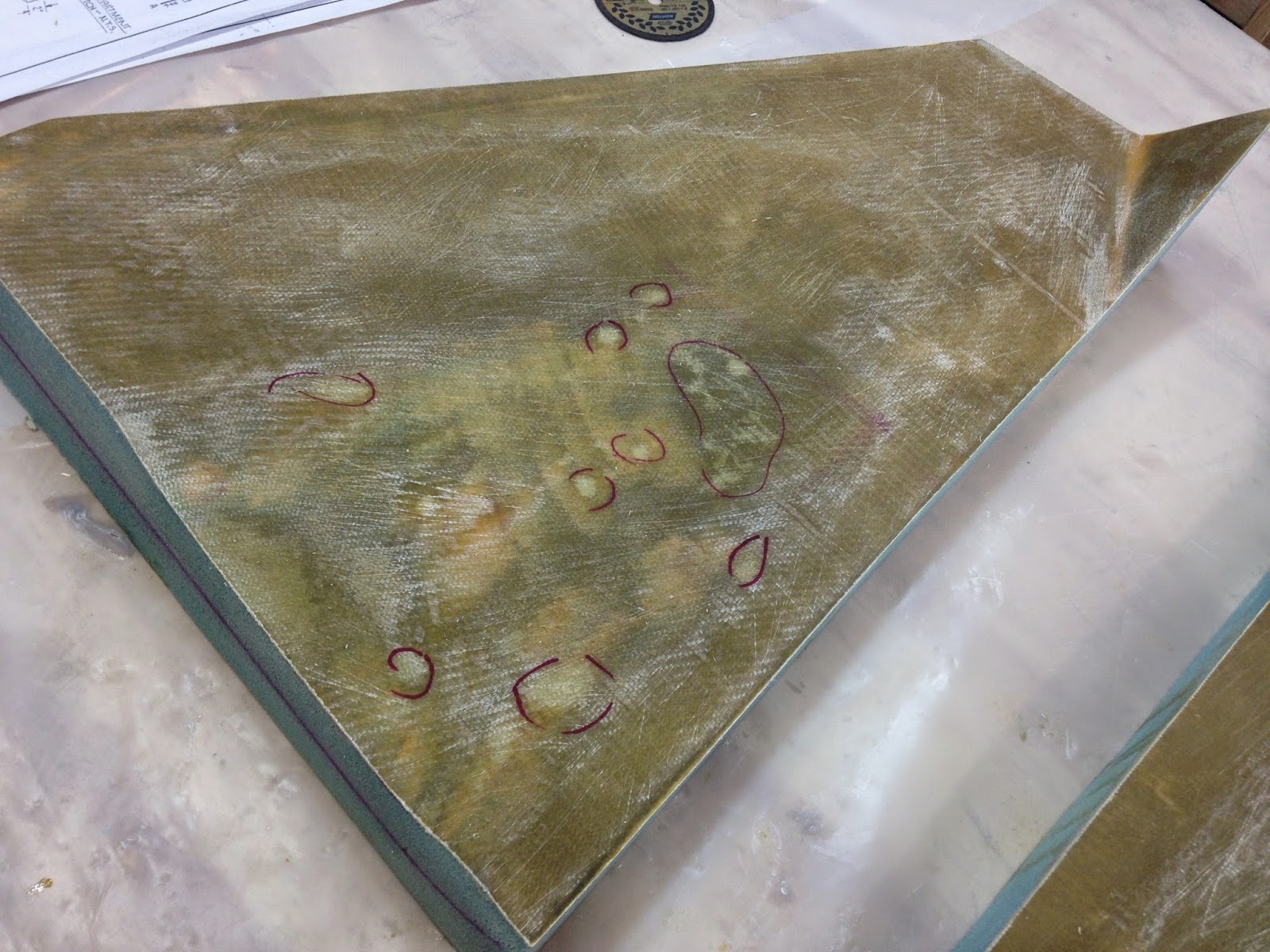

Air bubbles marked |
Unfortunately there were just too many bubbles to just go drill and inject epoxy into.
This situation was unacceptable.
I decided to make a structural repair by sanding over the offending air bubbles all the way down to the bare foam, and glass over them with greater care.
 |
Foam and fiber craters |
 |
2 BID plies over the depression |
 |
Peel-ply action |
 |

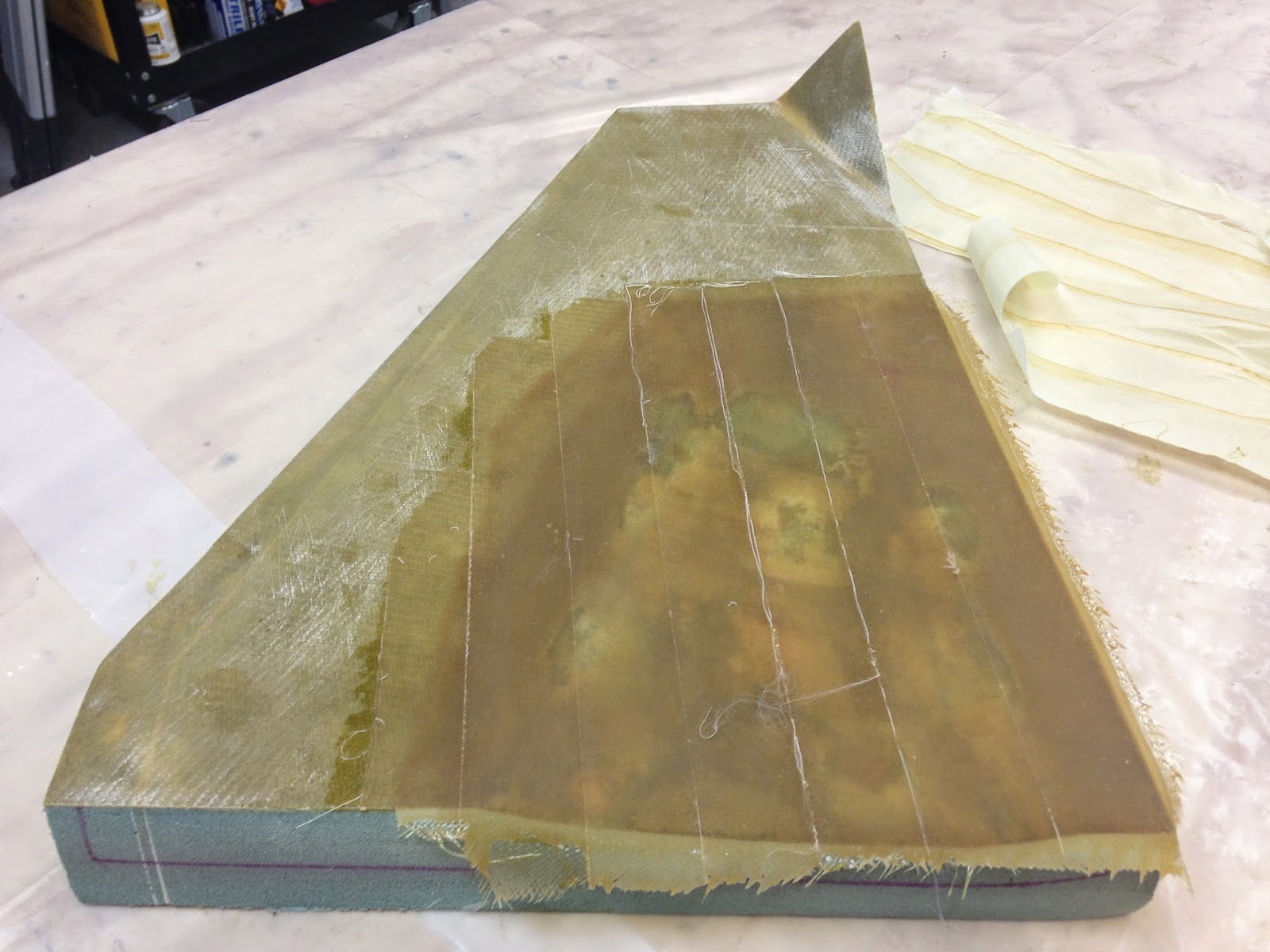

Peel-ply removed the next day |
 |
Trimmed, sanded, and ready for use |
Waiting for the panel to cure again cost me another day of building, but I felt a lot better about the integrity of the construction, and I moved on to glueing the left side to the nose.
 |
Very thick wet micro (to prevent running) |
 |
Left panel pushed in position |
 |
Excess micro overflow |
 |
Excess micro removed, panel shimmed and tied in position. |
While the West System micro quickly hardened in the above 90℉ shop temperature (> 32℃), I got my BID tapes ready to go...
 |
BID tape readied |
... and got started on the flox fillet.
 |
Flox fillet being applied to joint |
 |
Flox fillet following the joint |
The last step of the day was applying the BID tape, and peel-plying everything.
 |
BID tape application |
 |
Same thing looking forward |
 |
4 ply top corner reinforcement |
 |
Forward section peel-plied |
 |
A longer shot of the connections |
The following morning I removed the peel-ply, sanded the leftover strands of Dacron tape off, and trimmed the excess glass.
 |

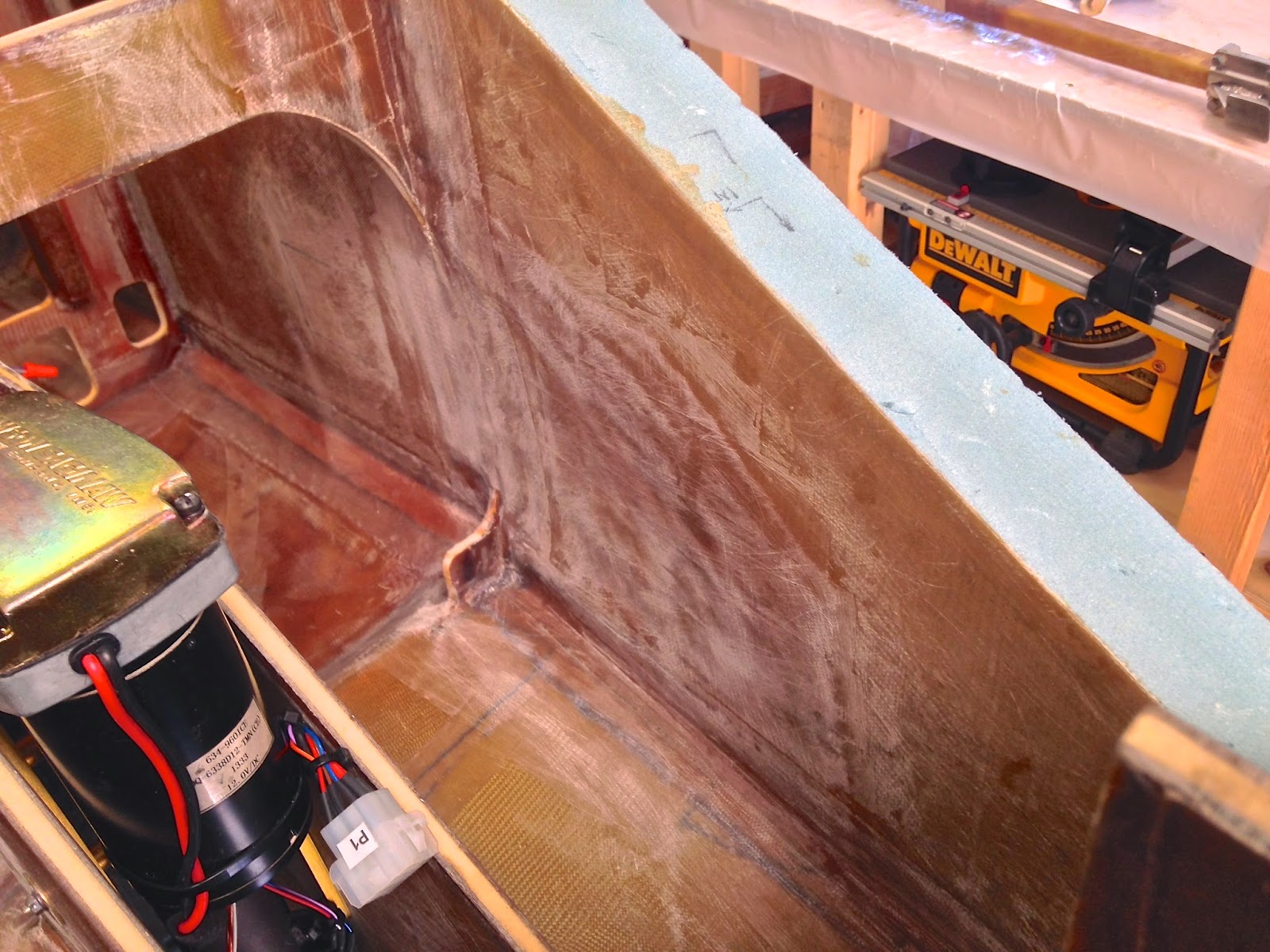

Peel-ply removed, and leftover peel-plies strands sanded off. |
 |
Same thing looking toward F-22 |
So, this is what the nose looks like today (it will be shaped and glassed later on)...
 |
Nose left side |
 |
Nose right side |
 |
Top view of both sides |
