Wednesday, March 21, 2018

"Tooling up" - 3D printer update


It didn’t occurred to me until today, when I went to write an update, that I might have never made a blog entry about purchasing my 3D printer in 2016.

“How rude!”

Well, you have probably seen it on the blog by now, so it’s a bit late for an announcement, however I shot a YouTube video of the delivery, unpacking, and first use at the time, so I’ll splice it right here…





Special delivery




If you are wondering if the $2K I spent on it were worth it, I’d say… “Without a doubt!”

Yes, I could have spent less for a model that used PLA primarily, but I needed to be able to print components I could actually rely on to be used and abused, and that meant ABS at a minimum.

I have been through a lot of ABS with this unit, and it has hardly ever skipped a beat. I just design a part, send it to the printer, and go do something else.

Here are just a few examples of things I made with my Zortrax some of my own design, some from thingiverse.com...


118ยบ drill bit sharpener (thingiverse #1024834)

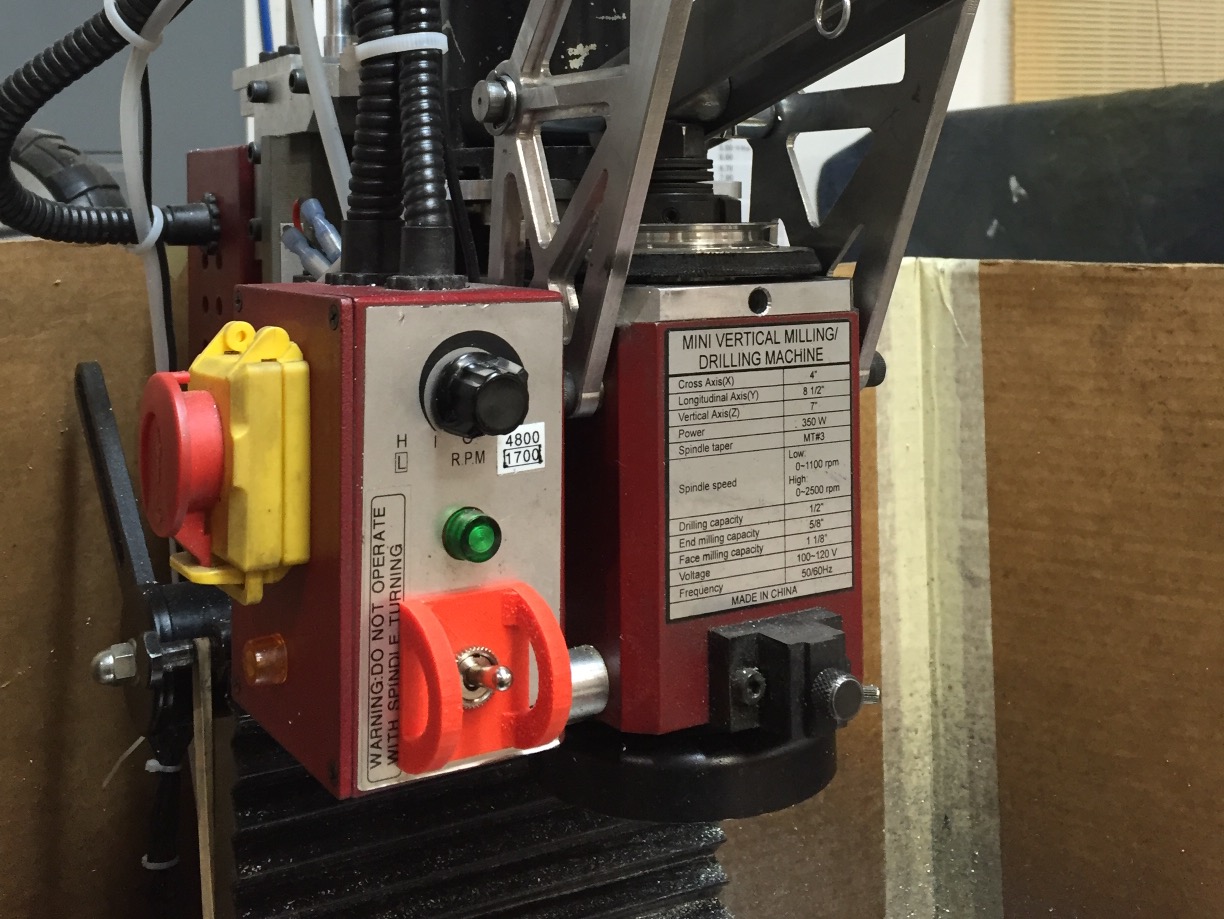

Switch Guard (thingiverse #879234)

File handle (thingiverse #1505789)

Ball screw shield for Zortrax M200 (thingiverse #256073)

Stackable Battery Holders (thingiverse #1004996)

Voronoi Vase (thingiverse #1514358)

Stand for Model Airplane (thingiverse #198954) and Long EZ model (thingiverse #402492)

S&W M&P Shield magazine extension (thingiverse #489386)

Original magazine bottom plate

Same gun with magazine extension. Now I can get a four finger grip on it.

Boeing 737 Cockpit Knob (thingiverse #447573)

Longeron splicing guide (Longeron repair)

Voltage regulator (aka Pitot power) - part 5

Heated Pitot tube power supply lid

Under cabin lights' outer case replacement

Voltage regulator (aka Pitot power) - part 6

Heated Pitot tube tester pass-through back cap

Table saw standoffs

Mini-Mill Y axis homing switch cover

Z axis homing switch and cover in position

Mini-Mill table extensions version #1 & #2

Mini-Mill table extension mounted on the mill

B737-300 to B737NG throttle quadrant modification for simulators

Other side of the 737-300 to 737NG conversion (needs some light sanding and paint)

Original B737 hardware reused in the conversion

Interlocking Tormach TTS toolholders

Mini-Lathe X axis physical stop/chip guard

Mini-Lathe's X axis stop/guard snapped in place

Industrial shape hose coupling printed in acid resistant plastic for low pressure anodizing bath

Zortrax M200 side filament guide support (thingiverse #1118465)

ABS requires higher nozzle temperatures, and is notoriously difficult to make it stick to the plate. The heated and perforated plate of the Zortrax M200 is designed for it, and I rarely if ever have had first layers unsticking problems messing up my prints.

This issue when it happens is due to the ABS cooling down too fast and contracting, curling up and off the table. My printer came with three sides and a door to contain the heat as long as possible, and this has been working very well for small to medium parts.

Recently though I tried printing a part that was nearly the size of the plate, and I ran into the issue over and over again.

I even tried rigging up a hair dryer on a tripod to keep the temperature up, but it actually cooled down the nozzle when blowing from the top, giving an error code, and didn’t prevent separation when blowing from the bottom.


Adding heat from above with a hair drier (did not work)

Same thing from below (no improvement)

I was able to salvage one of the parts, at the cost of six failed attempts.


"House of horrors"

That is just too many scrapped parts for my liking, and the waste of time and material started to add up. So, I looked online for ways to reduce this occurrence, and I ran into this factory image of a bunch of M200s running jobs at the factory…


Zortrax printing center

All of those machines obviously generate a lot of fumes that need to be removed via the overhead hoses, but I thought I could adapt the design to help close the top hole of the machine, thereby reducing heat loss, and perhaps get better parts.

I studied this image for a long time, then went on to designing my own version of enclosure, including all the 3D printed bits.


What I am trying to achieve

The main plan

2 hole 2 sides connector and 1/4-20 hardware

3 hole 2 sides connector

3 hole 2 sides reduced stick-out connector for rear left corner

3 hole corner connector

door hinge

2 hole 2 sides connector getting printed at 30% infill

2 hole 2 sides connector finished

2 hole 2 sides connector cleaned up and ready for use

Hinges and 3 hole corner connectors

I made the sides out of a 2’x4’ (61x122 cm) sheet of Lexan from Home depot.


All panels fitting inside a 2'x4' Lexan sheet

Panels (1:2 scale) laid out for drawing on Lexan

Lexan sheet ready to be cut

The Lexan is nominally 0.220" thick, but it averaged 0.210, so that's what I used in my plans.

Lexan cuts well on the table saw. The more teeth the better. Mine has 80 teeth.

After cutting the sides, I drilled the holes using the 3D printed parts as guides for the drill bit. This worked well, and I soon started assembling all the parts.


Test-fitting/hole-drilling the enclosure

The only modification I made to the printer was to drill and tap a small M4-0.75 hole in the back panel. I did this to reroute the black ribbon cable a little closer the center of the rear pass-through cutout, thus eliminating wire rubbing issues.


I moved the top ribbon cable holder about an inch toward the spool

So, here how it turned out in the end…




Enclosure door closed

Enclosure door open






Checking for wire interference at the limits of motion




I like the way it turned out a lot even though I accidentally cracked the rear left tab while drilling the half inch hole radius, and I had to superglue it back together then add a Lexan doubler to it as well.

Cracked Lexan repaired

I could redo that piece, but why? It works well, it’s out of the way, and I can hardly see it.

“It’ll eat!”

I should have probably done this project a long time ago, and if it does "deliver", I’d consider it a must-have on a high volume ABS capable 3D printer such as the M200.
